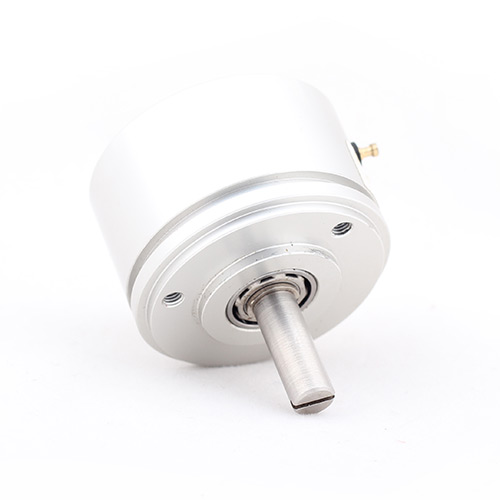

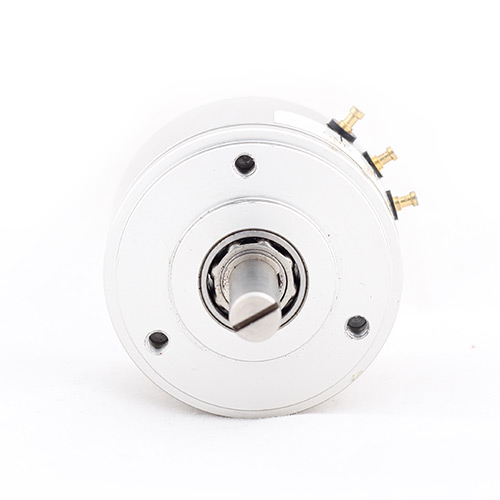

Product Features
● Adopting the principle of sensor production, it has good linearity and stable temperature.
● Adopting the function by sofware, can be customized according to requirements.
● It is non-contact, avoid the abrasion of traditional potentiometer. It has a long life and high reliability.
● Due to the cancellation of the brush substrate in the traditional potentiometer, the effective stroke reached 360 degrees, so it has no blind area measurement.
● Variety types of output signal (0-5V/0- 10V/4- -20mA/ serial digital signal output). It is convenient to collect and process the signal.
● Can realize the change of the effective stroke and output signal through software to meet a variety of special requirements.
● A wide range of applications and flexible usage.

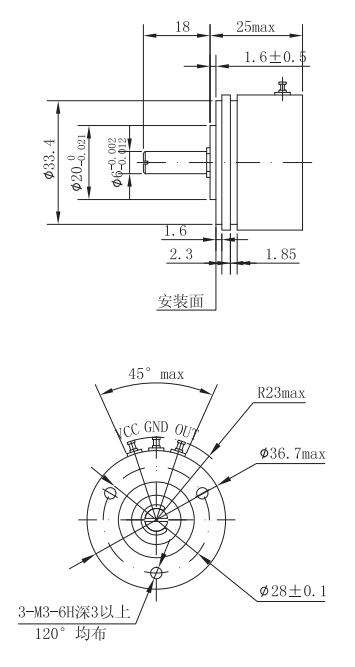

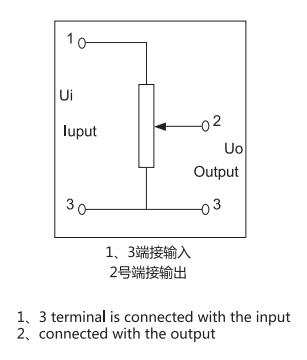

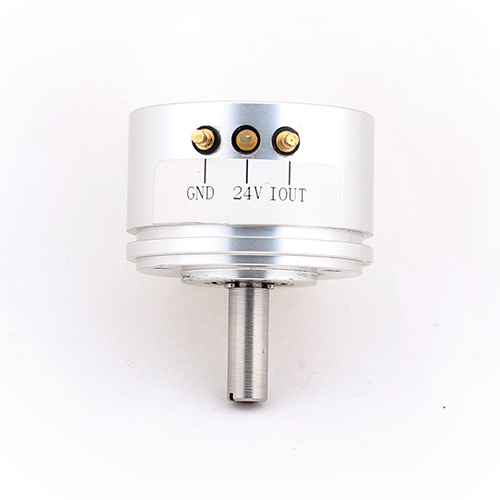

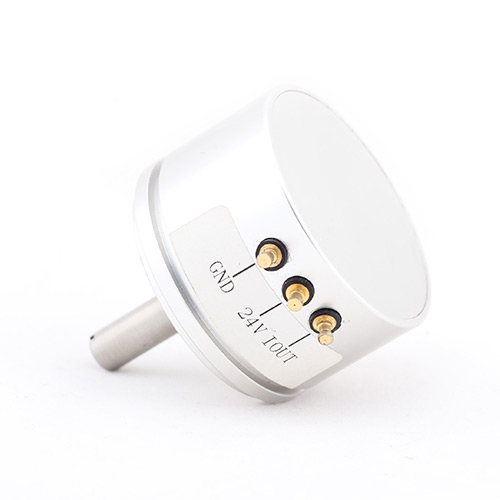

| VCC | GND | OUT |
| Theory electrical corner | 360°(No stop bit ) | Mechanical life | Theoretically infinite (depending on the bearing life) |
| Use environment | -30°C~ +80°C | Weight | about 60g |
| Storage temperature | -30°C~+80°C | Shell | Aluminum alloy, anodized surface |
| Levels of protection | IP54 | Shaft | Stainless steel |
| Starting torque | < 5mN.m | Bearing | 2 sets of precision ball bearings |
| Theory electrical corner | 360° | |
| Independent linear degrees | standard level : 0.3%; precision level : 0.2% ; UItra precision stage :0.1% | |
| Resolution | 4096 bit ( 12bit ) | |
| Sampling rate | 384us/96us (high speed ) | |
| Working current | 5V± 10% | 15~30V |
| Output signal | 0~5V ( ratio ) | 4~24mA |
| Maximum operating current | < 16mA | <35mA |
| Output deviation from the beginning to the end | <1%.VCC | <0.05mA |
| Load resistance | > 10KQ | <600 |
| Electrical | Output range | Standard output 0~ 100% |
| Output direction | Standard for clockwise signal output, also can be set to counterclockwise signal output. | |
| Other output mode | Can realize the special wide voltage 9~30V input, 4~20mA0~ 20mA output; wide voltage 0~5V, PWM output. | |
| Special shaft type | According to customer requirements diameter, or shaft special processing. | |
| Mechanical | Special mechanical rotation | With a stop bit (345 degree), can provide 270°、180°、90° and ofther special mechanical angle and also can be customized. |
| Special torque | Producing light torque products <0.5mN m and high torque produicts or <30mN - M. | |
| Special protection grade | Provide products with special protection grade more than IP54. |
If you have other special requirements (such as digital signal, the output signal of the PWM etc.) please contact us.
HuiRen Electronic is proud to be one of the leader of condustive plastic potentiometer , Industrial joystick.
