Product Features
● Precision linearity
● Long mechanical life
● High resolution
● Small dynamic noise
● Convenient and reliable installation
| Standard Resistance | 5KΩ,10KΩ |
| Resistance Tolerance | ±15% |
| Independent Linearity | 1.0%~0.1% |
| Electrical Travel | 50mm~ 650mm(每25mm递增Increasing every 25mm ) |
| Power Rating | 0.04W/cm ( 70°C ) |
| ResistTemperature Coefficient | t400p.p.m./"C |
| Insulation Resistance | ≥1000KΩ ( 500VD.C) |
| Dielectric Strength | 500V ( AC.RMS)1min |
| Output Smoothness | ≤+0.1% |
| Mechanical Travel | the theory electrical trip+ 8mmt2mm |
| Work force | ≤7.5N |
| Driving device | metal rod |

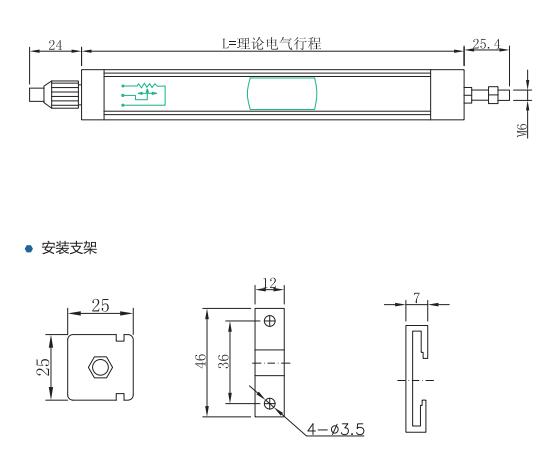

| Installation | Trestle(Center of the variable distance) |
| The maximal displacement speed | 10m/s |
| Life Expectancy | 50*106周cycle |
| Operating Temperature | -55°C~+125°C |
| Vibration | 15G 2000HZ |
| Shock | 50G 11ms |
